Brand: Honda; Yamaha;

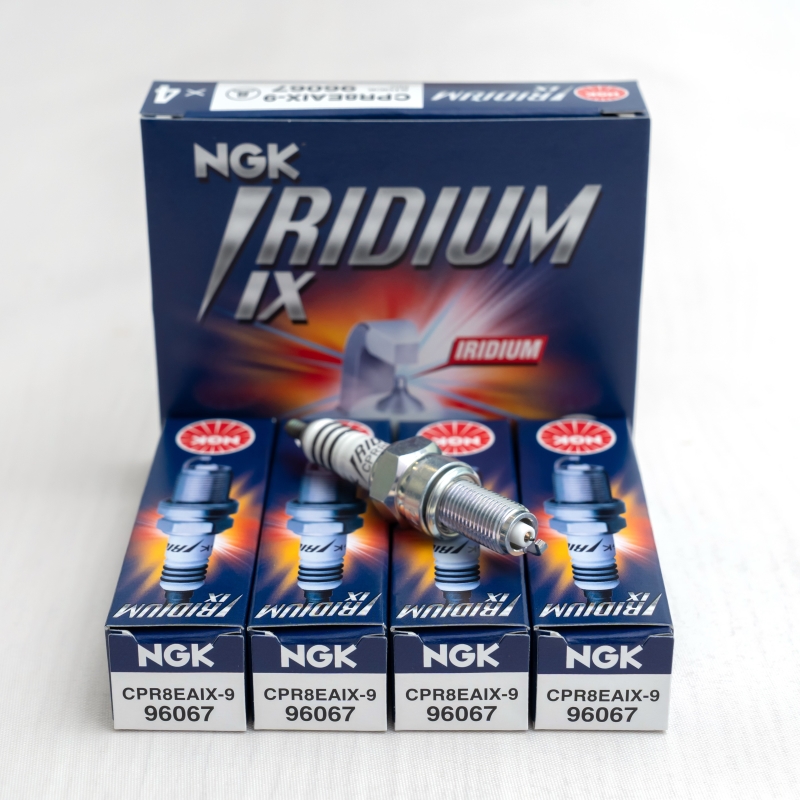

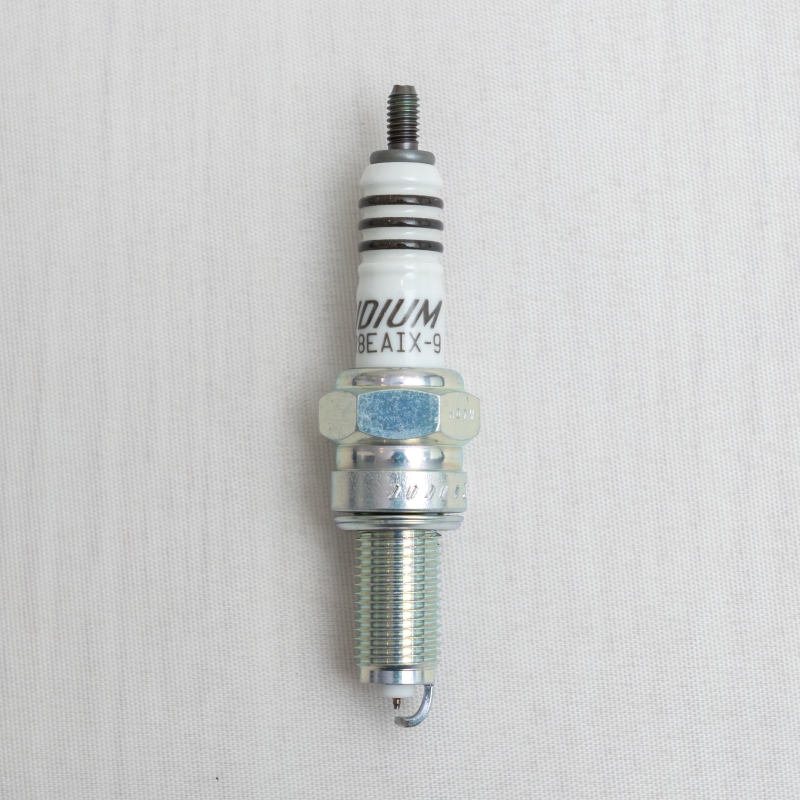

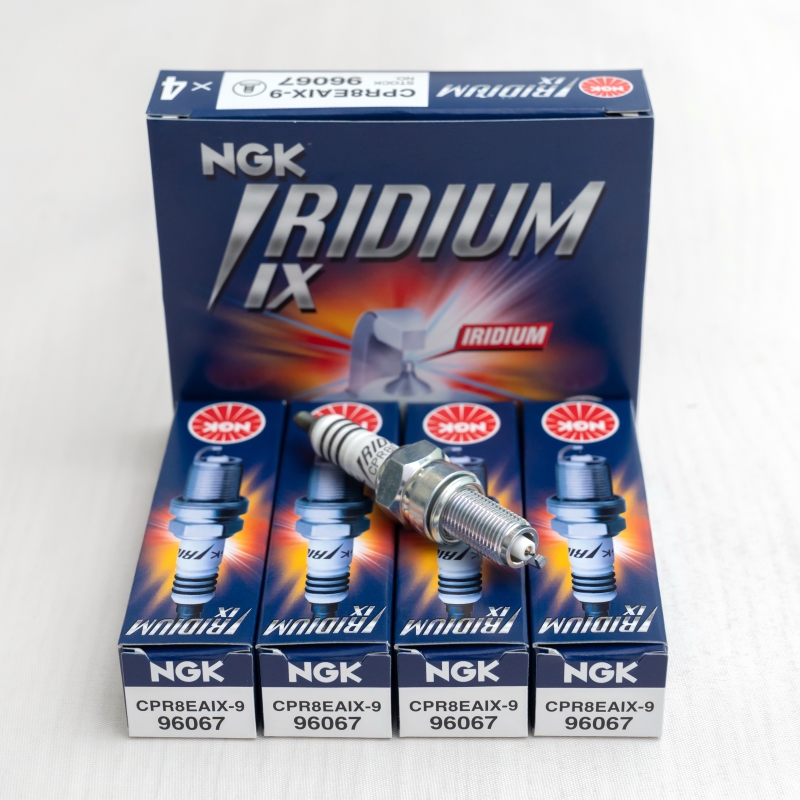

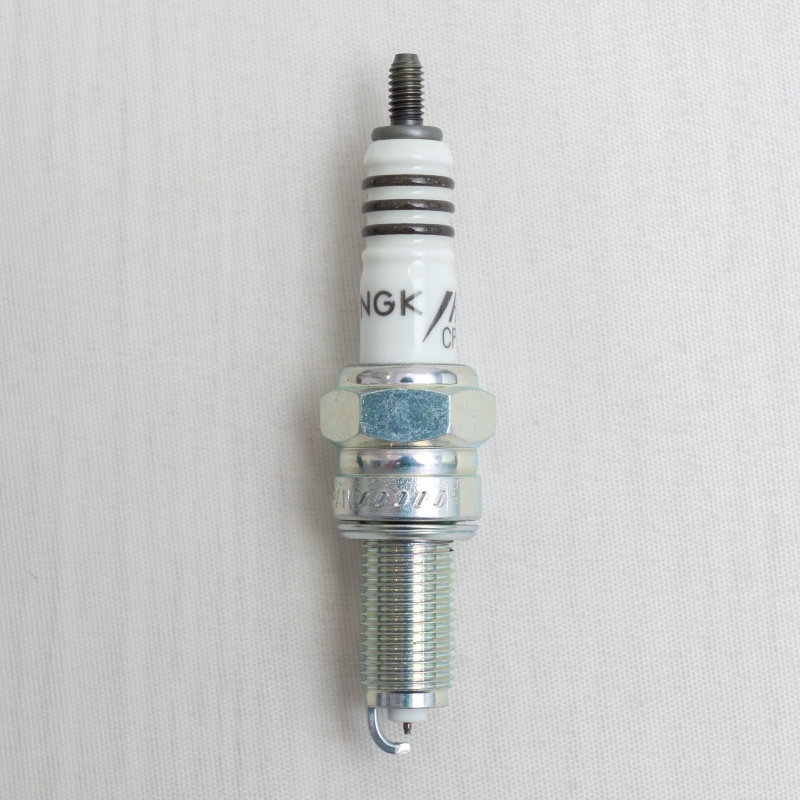

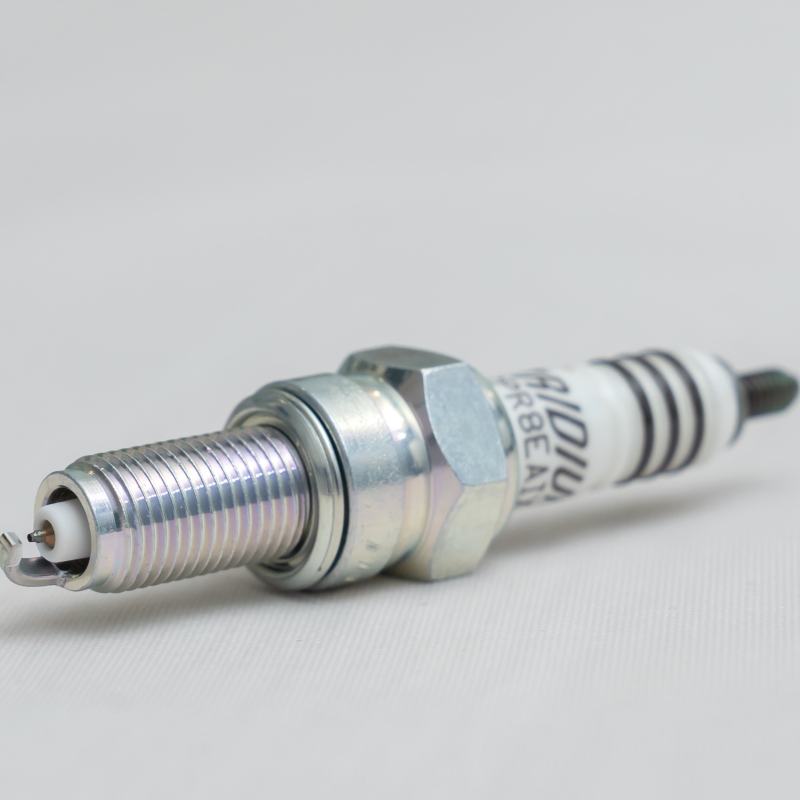

CPR8EAIX-9 (1 box 1 pc)
Code: CPR8EAIX-9
290.000đ
-29%
SPECIFICATION
- Diameter: ϕ10
- Lace leg length: 19mm
- Hex Wrenches: 16mm
- Electrode gap: 0.9mm
FEATURE
- Brand: NGK
- Motorcycle series:
- Honda CB500F/CB500X/Rebel500/CBR500R.
- Yamaha Exciter 135 (2005-2014) /NVX 125 /155 (2016-)
- Country of origin: Japan
- Model: Iridium IX
PRODUCTS APPLICABLE TO MODELS
- Honda
- CB500F
- CB500X
- Rebel500
- CBR500R.
- Yamaha
- Exciter 135 (2005-2014)
- NVX 125 /155 (2016-).
INSTALLATION INSTRUCTIONS
- First, tighten the spark plug by hand until the piston rod touches the cylinder head. In case you have trouble tightening the spark plug by hand, use another tool such as a soft rubber hose to make the installation easier.
- Limit the use of wrenches to install spark plugs on the original engine head because it is likely that the threaded part of the spark plug will be damaged if not careful.
| Spark plug diameter | Tightening force |
|
8mm |
8-10N-m (0.8 – 1.0kgm) |
|
10mm |
10-12N-m (1.0 – 1.2kgm) |
|
12mm |
15-20N-m (1.5 – 2.0kgm) |
SAFETY INSTRUCTIONS
- Do not tamper with spark plug gaps
- Appropriate torque should be applied.
- Recommended for applications where it is recommended.
