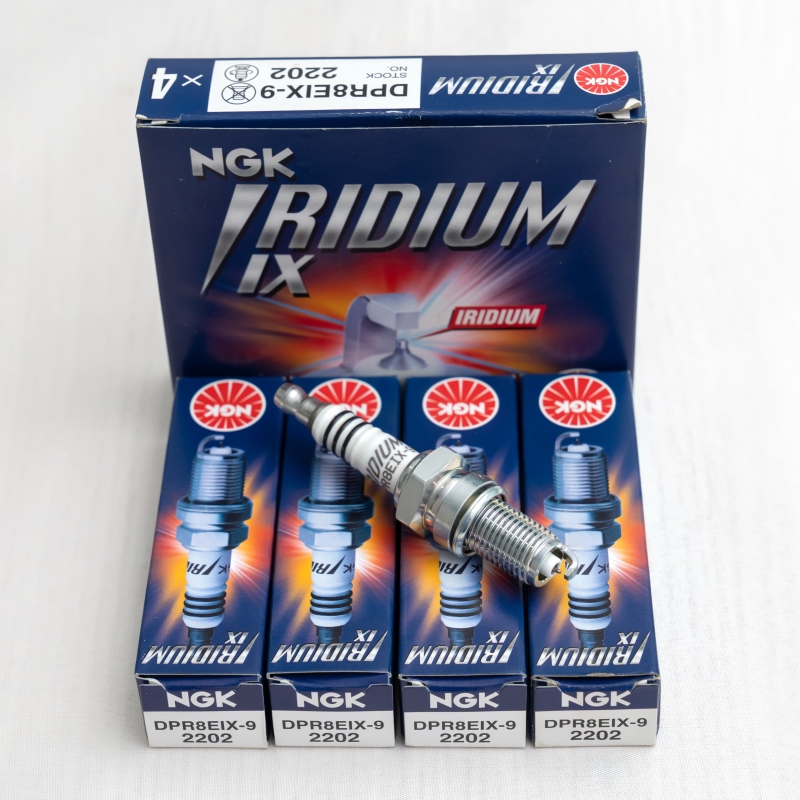

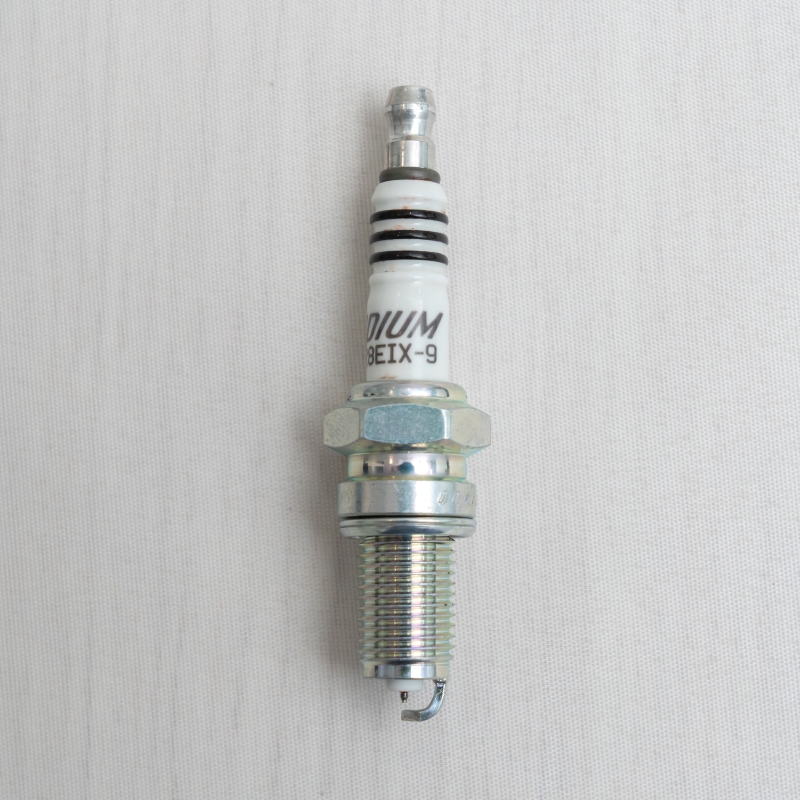

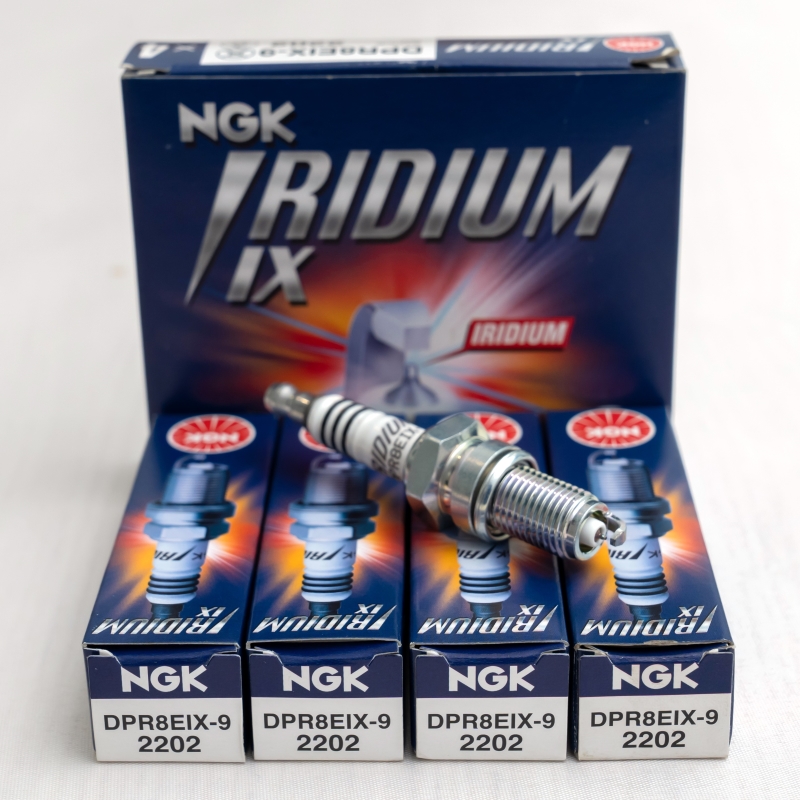

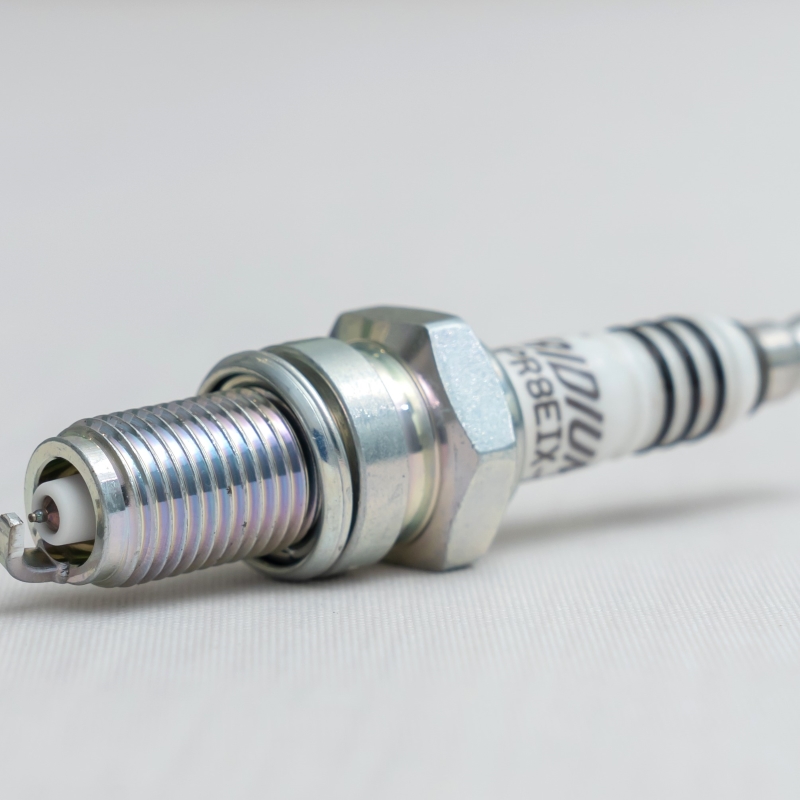

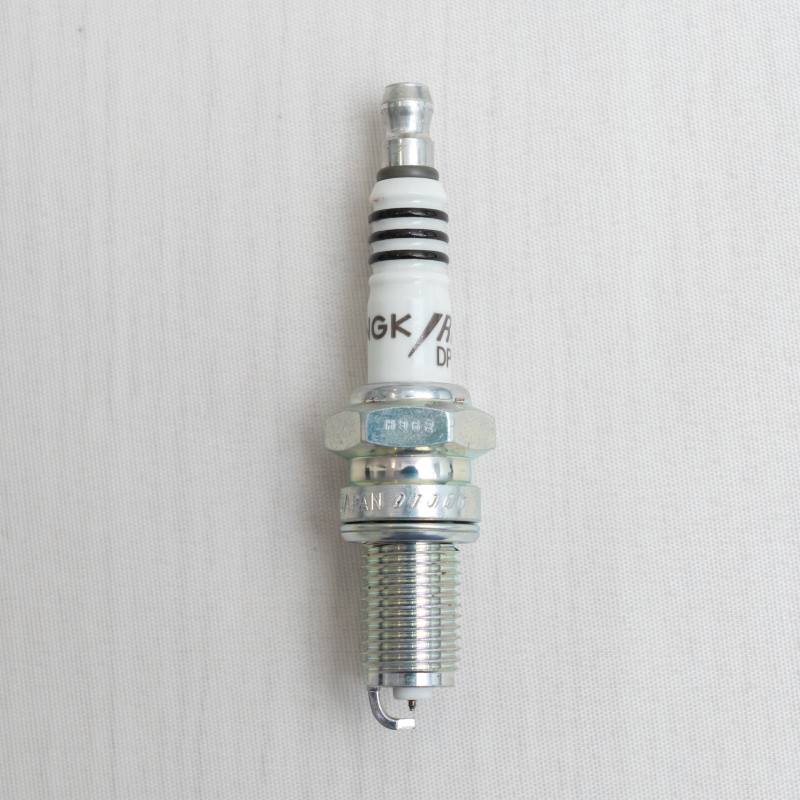

DPR8EIX-9 (1 box 1 pc)
Product code: DPR8EIX-9
SPECIFICATIONS
- Diameter: ϕ10
- Lace leg length: 19mm
- Hex wrenches: 18mm
- Electrode gap: 0.9mm
FEATURE
- Brand: NGK
- Motorcycles name: Honda CBR1000F, CBR750F; BMW K1100RS/LT
- Country of origin: Japan
- Model: Iridium IX
PRODUCTS APPLICABLE TO VEHICLES
- Honda CBR1000F, CBR750F; BMW K1100RS/LT
INSTALLATION INSTRUCTIONS
- First, tighten the spark plug by hand until the piston rod touches the cylinder head. In case you have trouble tightening the spark plug by hand, use another tool such as a soft rubber hose to make the installation easier.
- Limit the use of a wrench to install the spark plug on the original engine head because it is possible that the threaded part of the spark plug will be damaged if not careful.
| Spark plug diameter | Tightening force |
|
8mm |
8-10N-m (0.8 – 1.0kgm) |
|
10mm |
10-12N-m (1.0 – 1.2kgm) |
|
12mm |
15-20N-m (1.5 – 2.0kgm) |
| 14mm |
25-30N-m (2.5 – 3.0kgm) |
| 18mm |
35-40N-m (3.5 – 4.0kgm) |
**For taper type spark plugs (without spacers): Tightening force 10-20N-m (1.0 – 2.0kgm)
SAFETY INSTRUCTIONS
- The spark plug clearance should not be disturbed.
- Appropriate torque should be applied.
- Recommended for applications where it is recommended.
