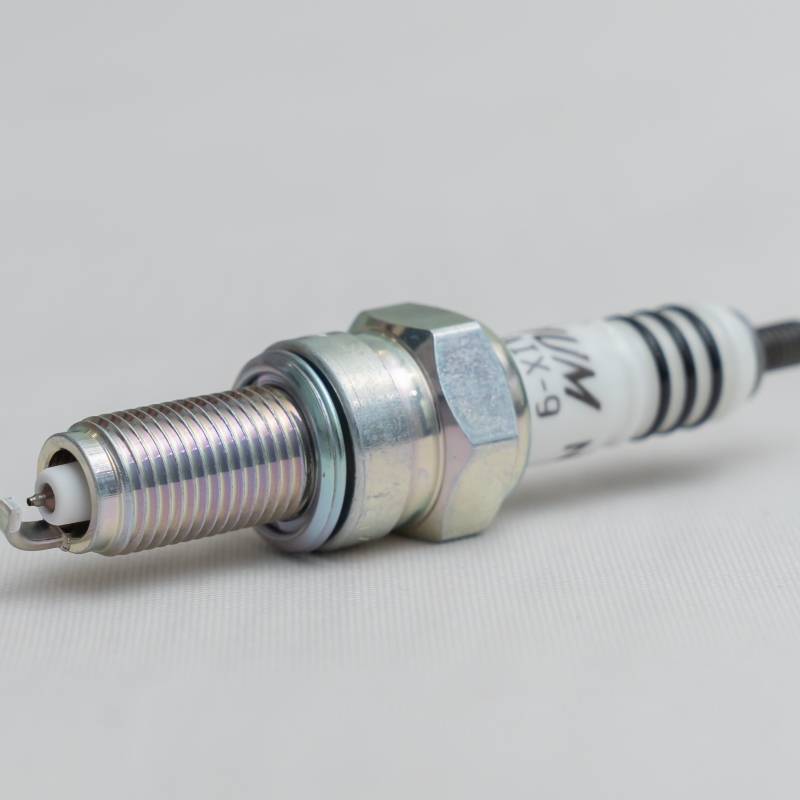

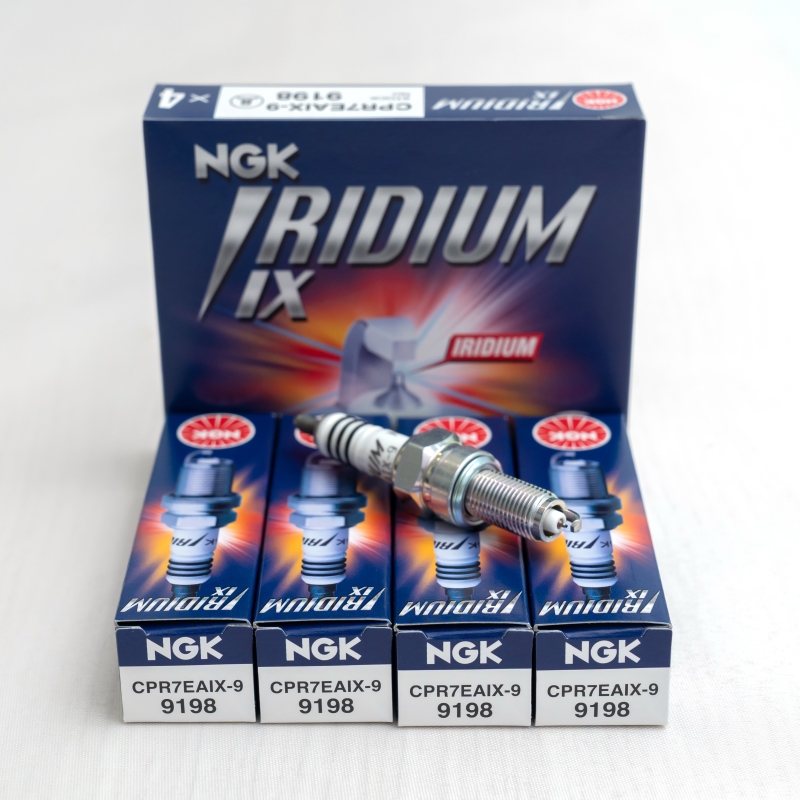

CPR7EAIX-9 (1 box 1 pc)

CPR7EAIX-9 (1 box 1 pc)

Product code: CPR7EAIX-9

 SPECIFICATION

  • Diameter: ϕ10
  • Lace leg length: 19mm
  • Hex Wrenches: 16mm
  • Electrode gap: 0.9mm

FEATURE

  • Brand: NGK
  • Motorcycle series: HONDA MSX, HONDA PCX, Lead, SH Mode, HONDA Air Blade
  • Country of origin: Japan
  • Model: Iridium IX

Where agent Document

PRODUCTS APPLICABLE TO MODELS

  • Honda MSX 125 2014-
  • SH 125/150 2012.06-2019
  • Air Blade 2009-
  • PCX 125/150 2010-2018.01
  • LEAD 2013-
  • SH mode 2013-2020

INSTALLATION INSTRUCTIONS

  • First, tighten the spark plug by hand until the piston rod touches the cylinder head. In case you have trouble tightening the spark plug by hand, use another tool such as a soft rubber hose to make the installation easier.
  • Limit the use of wrenches to install spark plugs on the original engine head because it is likely that the threaded part of the spark plug will be damaged if not careful.
Spark plug diameter Tightening force

8mm

 8-10N-m (0.8 – 1.0kgm)

10mm

 10-12N-m (1.0 – 1.2kgm)

12mm

 15-20N-m (1.5 – 2.0kgm)

SAFETY INSTRUCTIONS

  • Do not tamper with spark plug gaps
  • Appropriate torque should be applied.
  • Recommended for applications where it is recommended.
Product

Other

CPR8EAIX-9 (1 box 1 pc)
CPR8EAIX-9 (1 box 1 pc)
Product code: CPR8EAIX-9
Detail
CPR9EAIX-9 (1 box 1 pc)
CPR9EAIX-9 (1 box 1 pc)
Product code: CPR9EAIX-9
Detail
CR6HIX (1 box 1 pc)
CR6HIX (1 box 1 pc)
Product code: CR6HIX
Detail
DPR8EIX-9 (1 box 1 pc)
DPR8EIX-9 (1 box 1 pc)
Product code: DPR8EIX-9
Detail

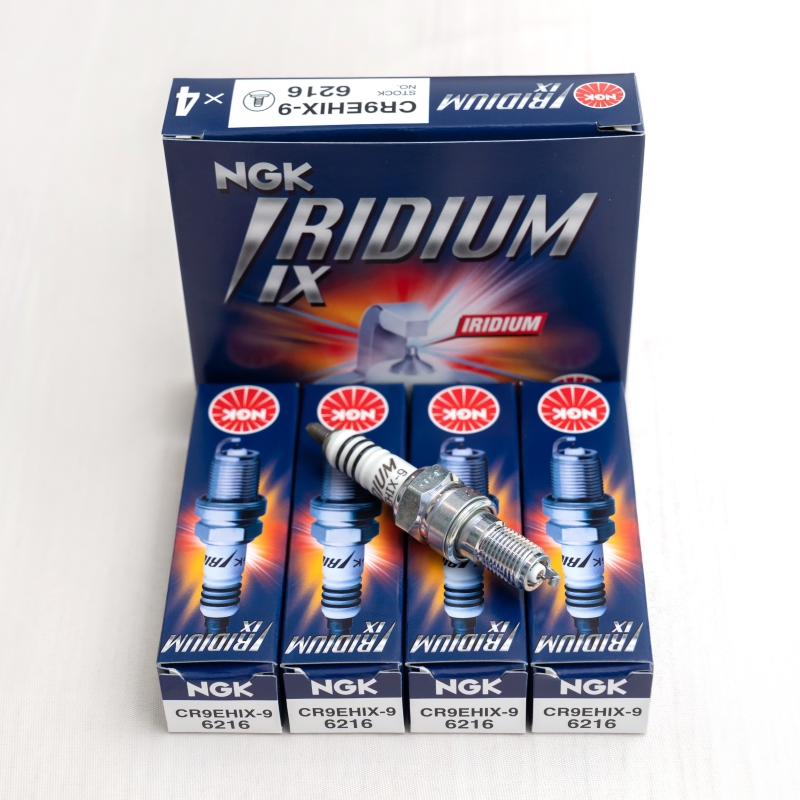

CR9EHIX-9 (1 box 1 pc)
