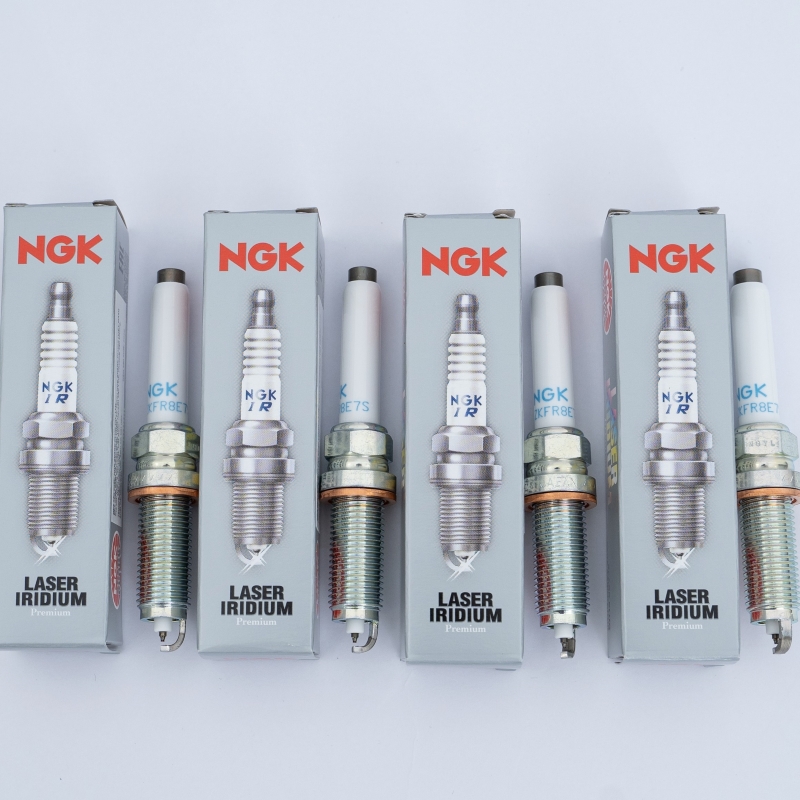

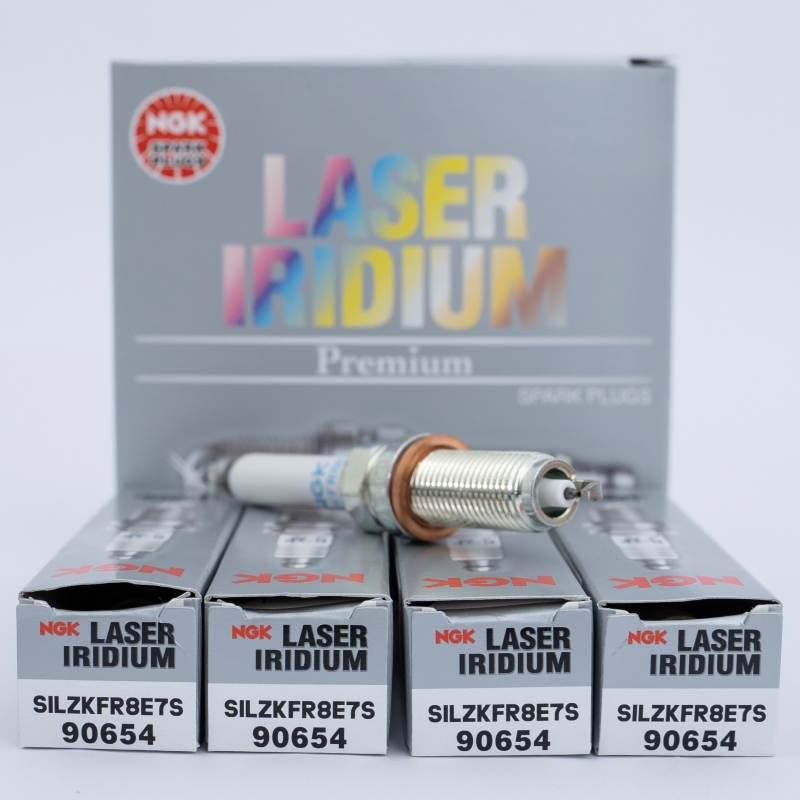

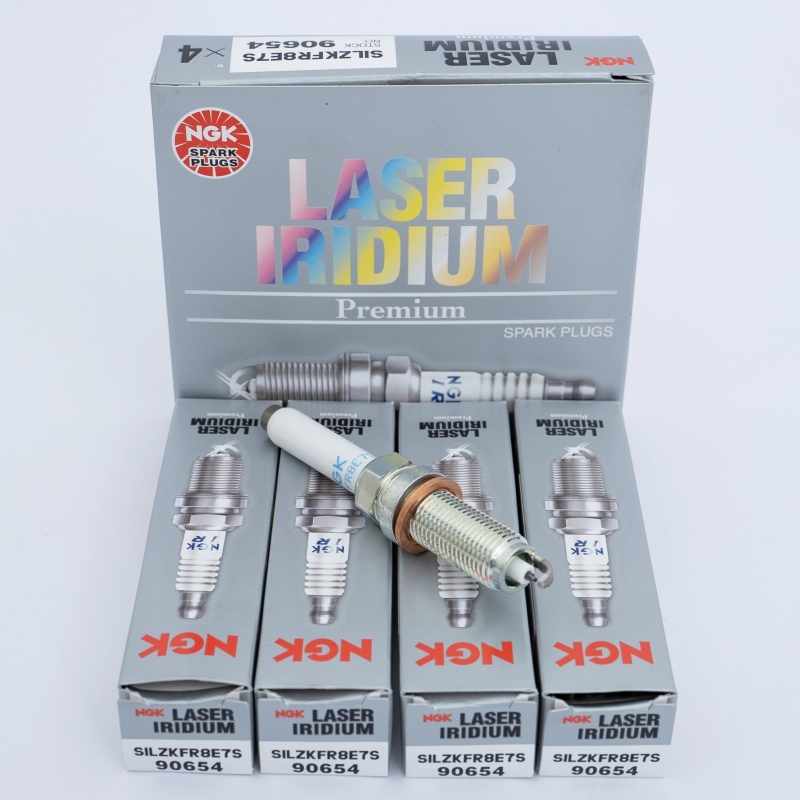

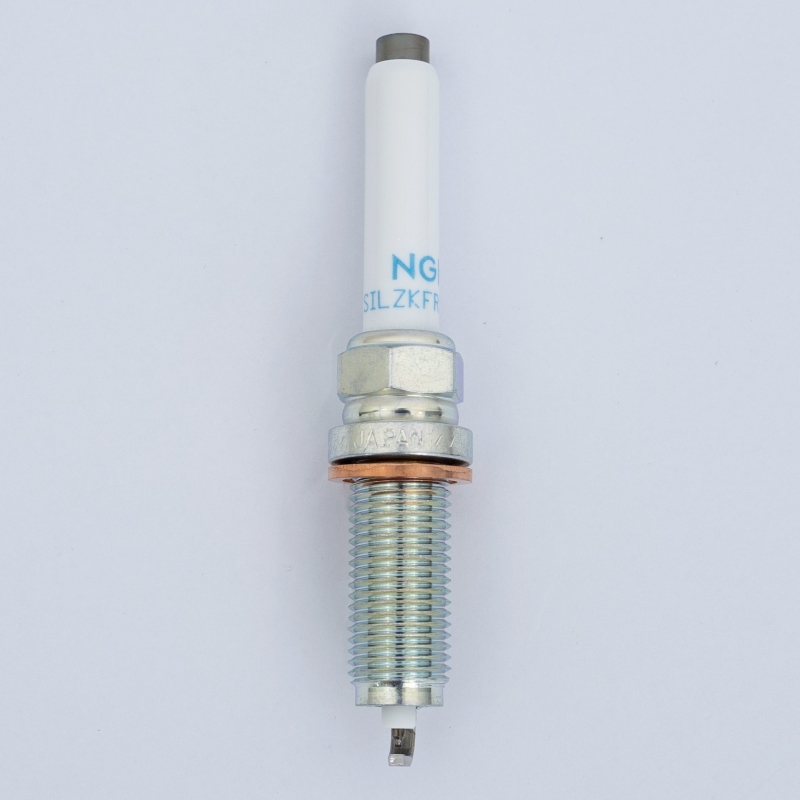

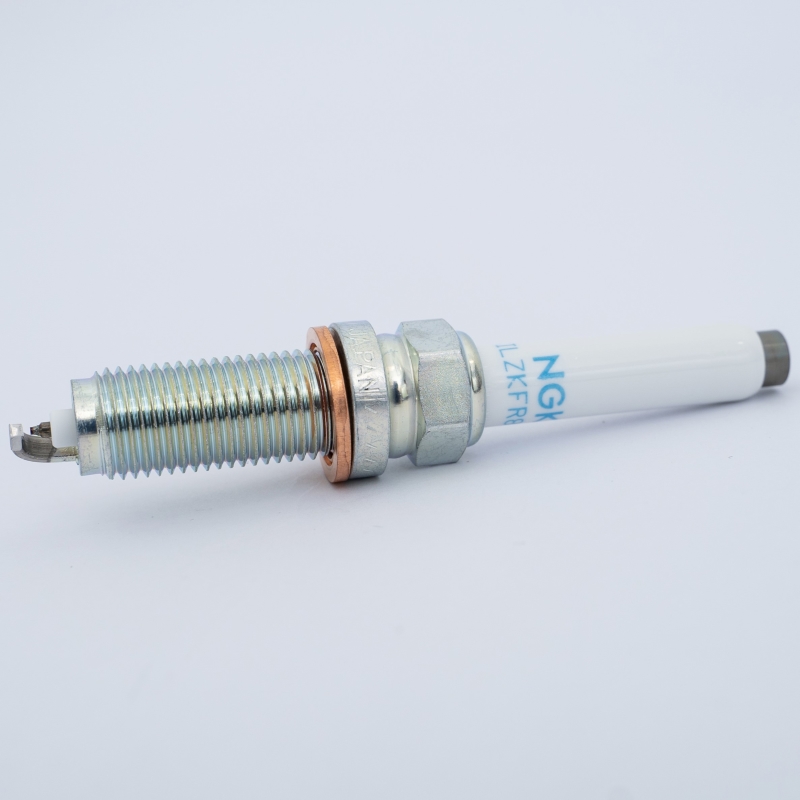

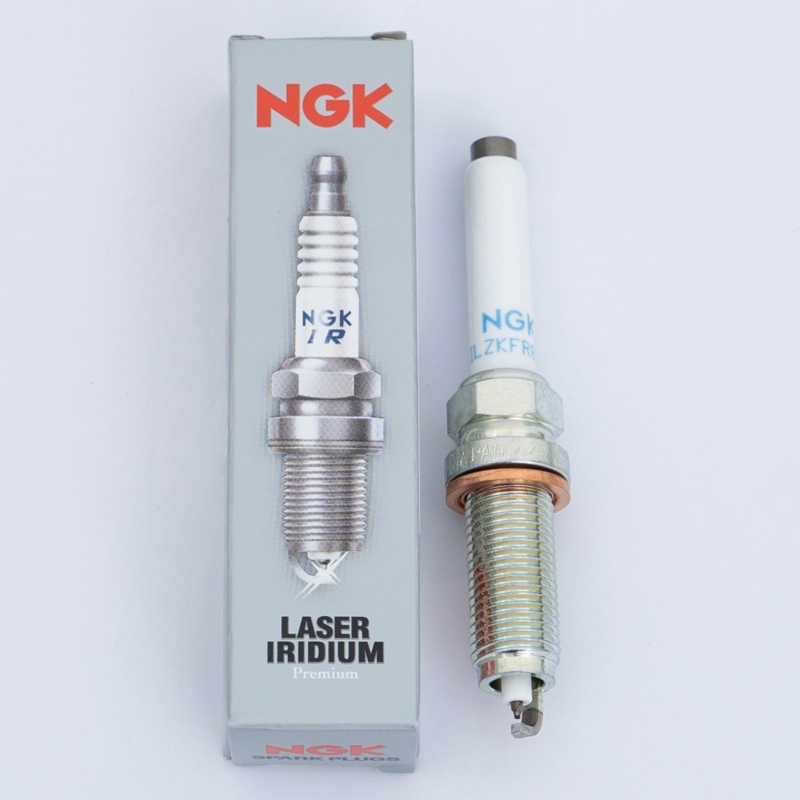

SILZKFR8E7S (1 box 4 pcs)

SILZKFR8E7S (1 box 4 pcs)

Product code: SILZKFR8E7S

 SPECIFICATION

  • Diameter:: ϕ12
  • Lace leg length: 26.5mm
  • Hex Wrenches: 14mm
  • Electrode gap: 0.7mm

FEATURE

  • Brand: NGK
  • Car series: Mercedes A Class A180/A200 1.6L (2012-2018) - M270.910; Mercedes C Class C180 1.6L (2013~) - M274.910; Mercedes C Class C200 2.0L (2013-2018) - M274.920; Mercedes C Class C250 2.0L (2014-2018) - M274.920; Mercedes C Class C300 2.0L (2015-2018) - M274.920; Mercedes E Class E200 2.0L (2013~) - M274.920; Mercedes CLA200 1.6L (2013~) - M270.910; Mercedes GLA200 1.6L (2013~) - M270.910
  • Model: Iridium IX

Where agent Document

PRODUCTS APPLICABLE TO MODELS

  • Mercedes A Class A180/A200 1.6L (2012-2018) - M270.910
  • Mercedes C Class C180 1.6L (2013~) - M274.910
  • Mercedes C Class C200 2.0L (2013-2018) - M274.920
  • Mercedes C Class C250 2.0L (2014-2018) - M274.920
  • Mercedes C Class C300 2.0L (2015-2018) - M274.920
  • Mercedes E Class E200 2.0L (2013~) - M274.920
  • Mercedes CLA200 1.6L (2013~) - M270.910
  • Mercedes GLA200 1.6L (2013~) - M270.910

INSTALLATION INSTRUCTIONS

  • First, tighten the spark plug by hand until the piston rod touches the cylinder head. In case you have trouble tightening the spark plug by hand, use another tool such as a soft rubber hose to make the installation easier.
  • Limit the use of wrenches to install spark plugs on the original engine head because it is likely that the threaded part of the spark plug will be damaged if not careful.
Spark plug diameter Tightening force

8mm

 8-10N-m (0.8 – 1.0kgm)

10mm

 10-12N-m (1.0 – 1.2kgm)

12mm

 15-20N-m (1.5 – 2.0kgm)
14mm

25-30N-m (2.5 – 3.0kgm)
18mm

35-40N-m (3.5 – 4.0kgm)

**For taper type spark plugs (without spacers): Tightening force 10-20N-m (1.0 – 2.0kgm)

SAFETY INSTRUCTIONS

  • Do not tamper with spark plug gaps
  • Appropriate torque should be applied.
  • Recommended for applications where it is recommended.
