Brand: Toyota; Lexus;

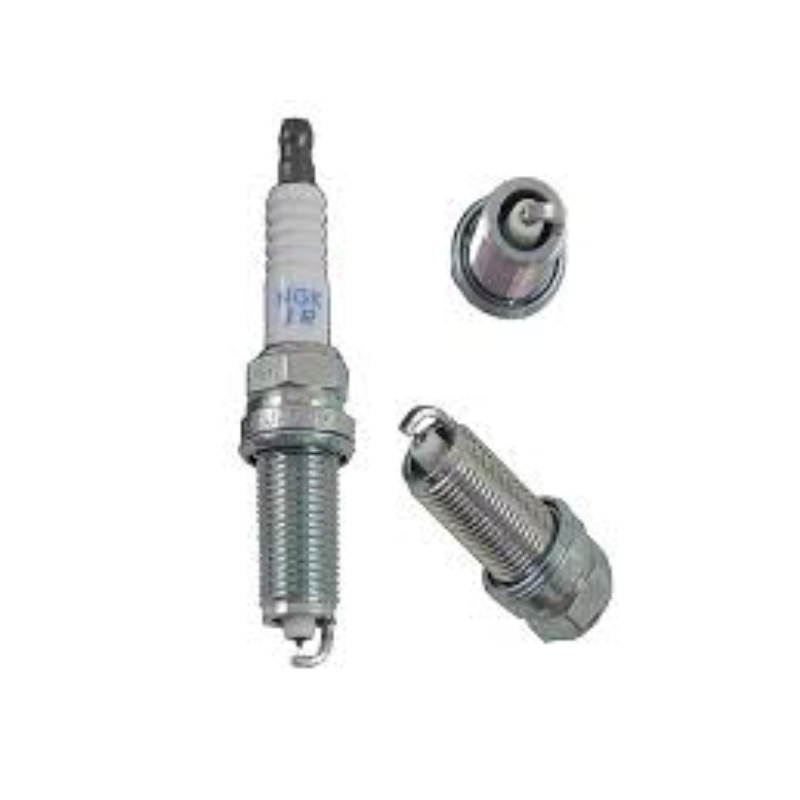

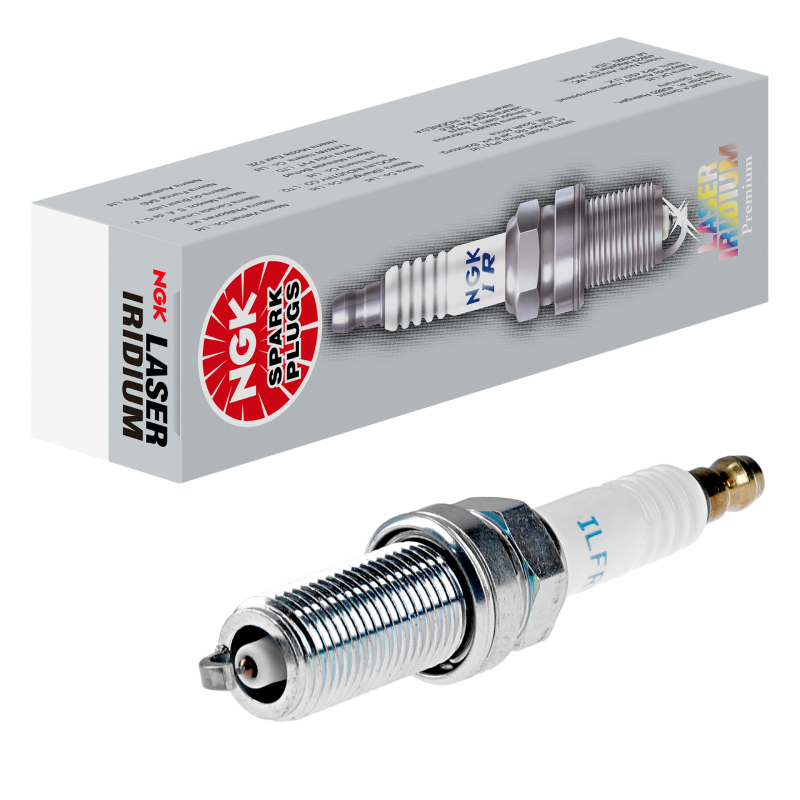

ILFR6T11 (1 hộp 4 con)
Code: ILFR6T11
1.210.000đ
-30%
SPECIFICATION
- Diameter: ϕ14
- Lace leg length: 26.5mm
- Hex Wrenches: 16mm
- Electrode gap: 1.1mm
- Heat range: 6
FEATURE
- Brand: NGK
- Car series:
- Toyota Prado '05
- Lexus LX 570 '10
- Country of origin: Japan
- Model: Laser Iridium
PRODUCTS APPLICABLE TO MODELS
- Toyota
- Prado '05
- Lexus
- LX 570 '10
INSTALLATION INSTRUCTIONS
- First, tighten the spark plug by hand until the piston rod touches the cylinder head. In case you have trouble tightening the spark plug by hand, use another tool such as a soft rubber hose to make the installation easier.
- Limit the use of wrenches to install spark plugs on the original engine head because it is likely that the threaded part of the spark plug will be damaged if not careful.
| Spark plug diameter | Tightening force |
| 8mm | 8-10N-m (0.8 – 1.0kgm) |
| 10mm | 10-12N-m (1.0 – 1.2kgm) |
| 12mm | 15-20N-m (1.5 – 2.0kgm) |
| 14mm | 25-30N-m (2.5 – 3.0kgm) |
| 18mm | 35-40N-m (3.5 – 4.0kgm) |
**For taper type spark plugs (without spacers): Tightening force 10-20N-m (1.0 – 2.0kgm)
SAFETY INSTRUCTIONS
- Do not tamper with spark plug gaps
- Appropriate torque should be applied.
- Recommended for applications where it is recommended.
