Brand: Toyota;

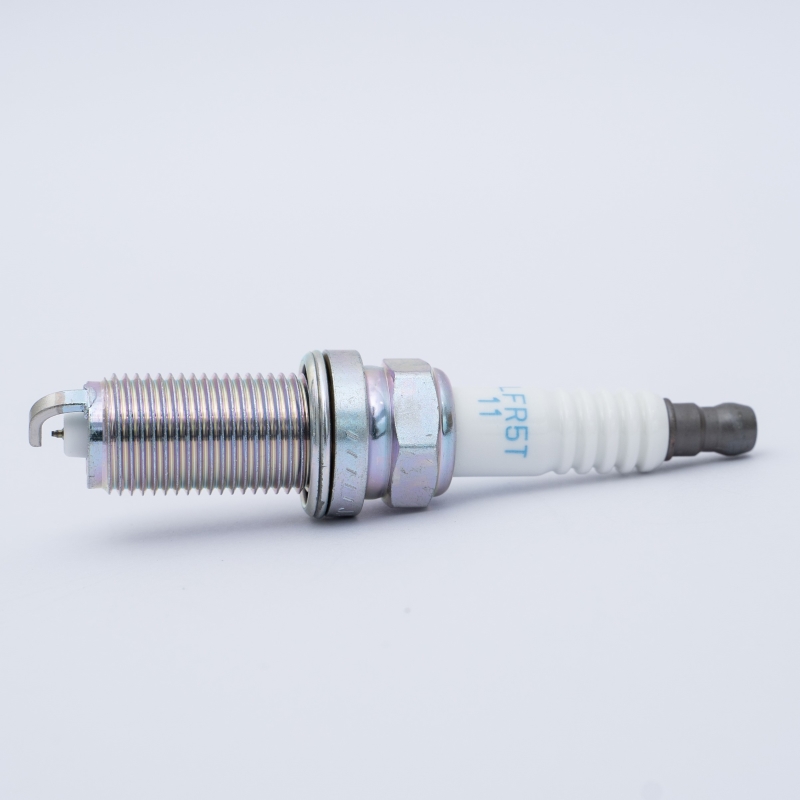

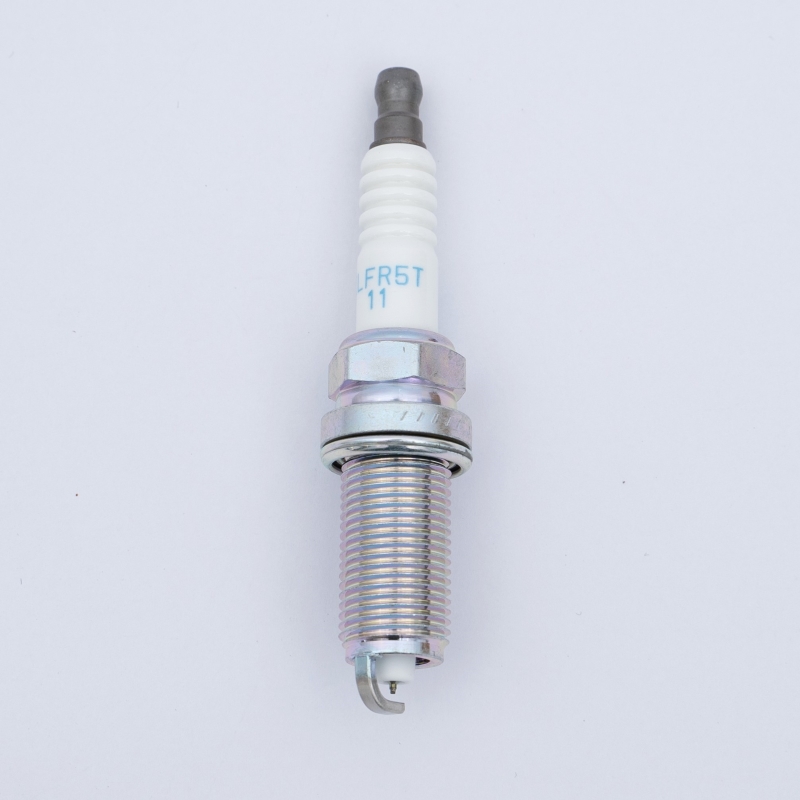

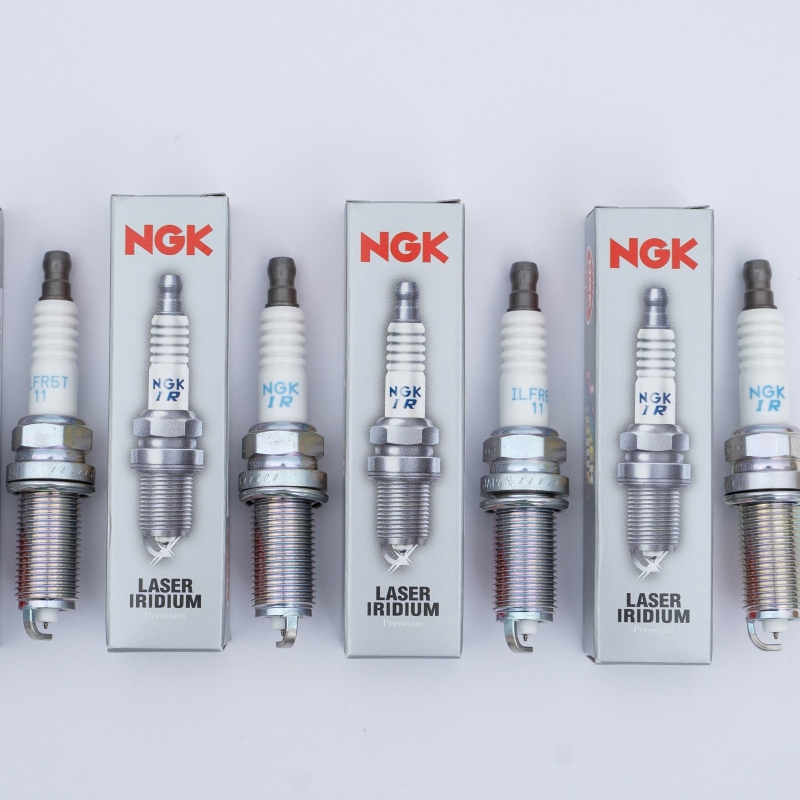

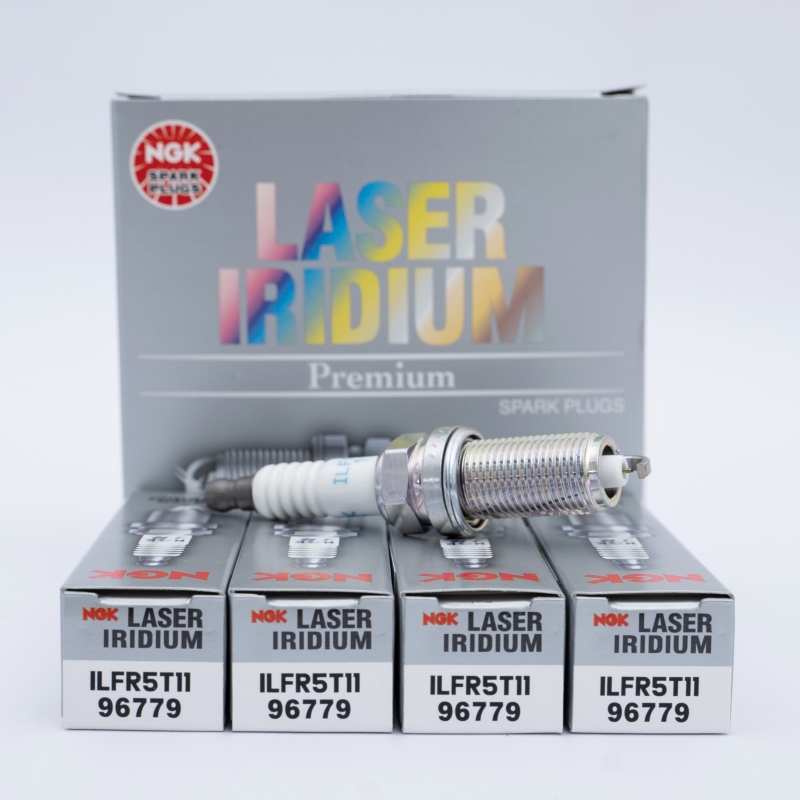

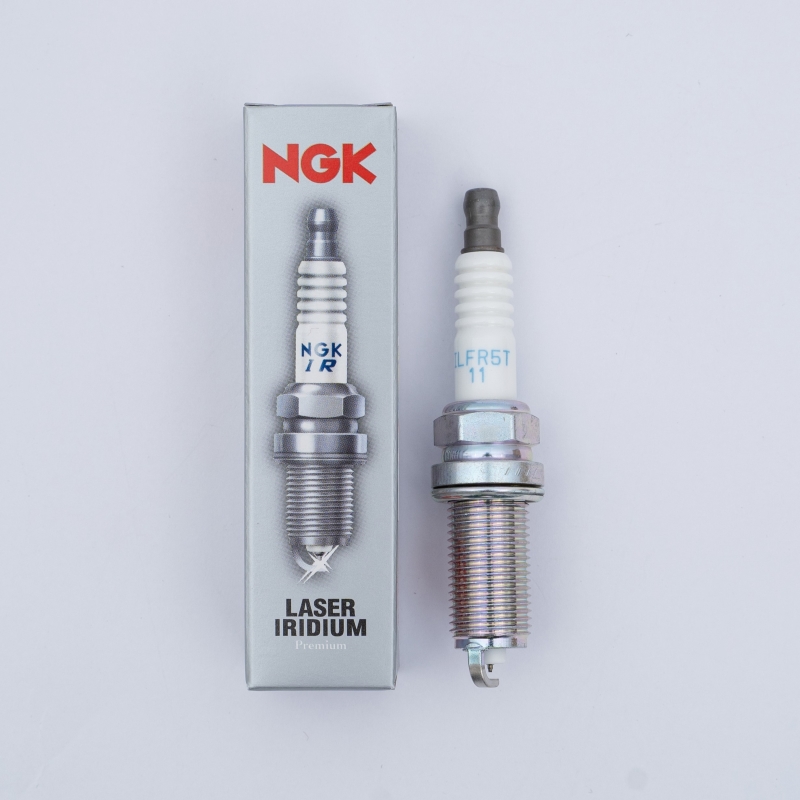

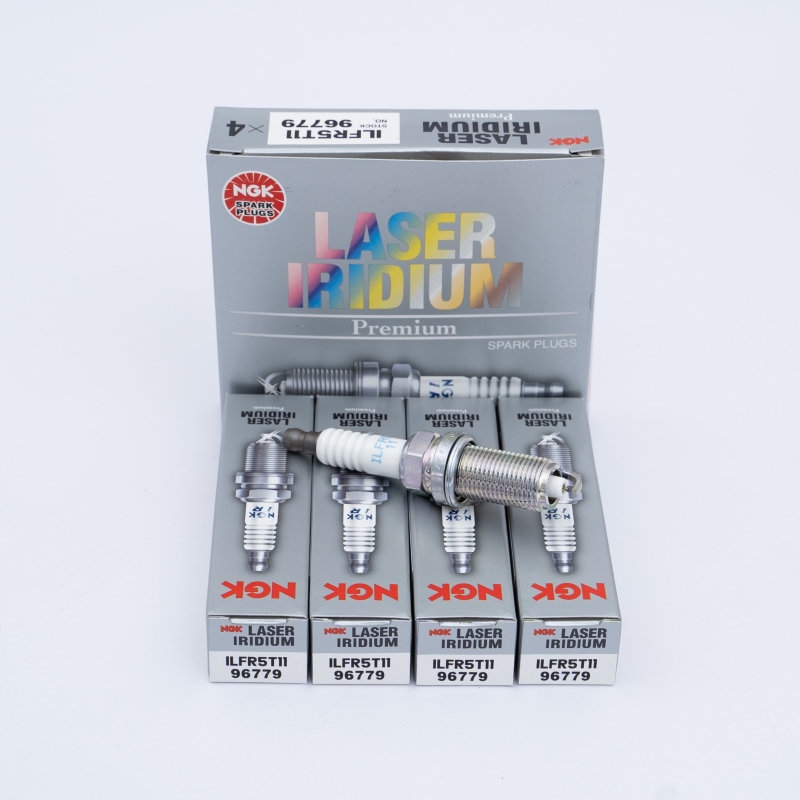

ILFR5T11 (1 box 4 pcs)
Code: ILFR5T11
1.210.000đ
-30%
SPECIFICATIONS
- Diameter: ϕ14
- Lace leg length: 26.5mm
- Hex wrenches: 16mm
- Electrode gap: 1.1mm
FEATURE
- Brand: NGK
- Cars name: Toyota Camry 2.4L '02-'06
- Model: Iridium IX
PRODUCTS APPLICABLE TO VEHICLES
- Toyota Camry 2.4L '02-'06.
INSTALLATION INSTRUCTIONS
- First, tighten the spark plug by hand until the piston rod touches the cylinder head. In case you have trouble tightening the spark plug by hand, use another tool such as a soft rubber hose to make the installation easier.
- Limit the use of a wrench to install the spark plug on the original engine head because it is possible that the threaded part of the spark plug will be damaged if not careful.
| Spark plug diameter | Tightening force |
| 8mm | 8-10N-m (0.8 – 1.0kgm) |
| 10mm | 10-12N-m (1.0 – 1.2kgm) |
| 12mm | 15-20N-m (1.5 – 2.0kgm) |
| 14mm | 25-30N-m (2.5 – 3.0kgm) |
| 18mm | 35-40N-m (3.5 – 4.0kgm) |
**For taper type spark plugs (without spacers): Tightening force 10-20N-m (1.0 – 2.0kgm)
SAFETY INSTRUCTIONS
- The spark plug clearance should not be disturbed.
- Appropriate torque should be applied.
- Recommended for applications where it is recommended.
